Registering CaseMap Servers

 Previous topic Next topic Topic directory requires JavaScript JavaScript is required for expanding text JavaScript is required for the print function Mail us feedback on this topic!

The Tools > Options tab allows you to register CaseMap Servers in the CaseMap Admin Console so that you can connect to it. The CaseMap Servers tab lists all servers registered in the CaseMap Admin Console and displays the server name and URL address for each. Each CaseMap Server name should be unique and non-case sensitive.



ac_note_icon

You can also register CaseMap Servers in the CaseMap and TextMap client applications by clicking Tools > Options > CaseMap Servers.





hmtoggle_plus1To register a CaseMap Server
1.On the Tools menu, click Options.
2.In the Options dialog box, click the Add button to open the New CaseMap Server dialog box.

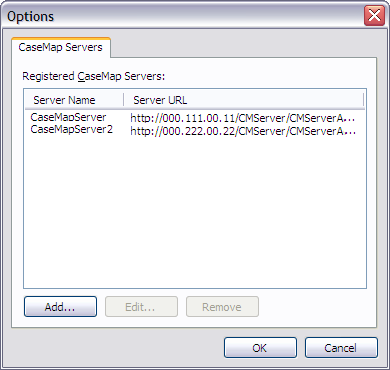

Tools > Options

3.In the Server Name field, type in the server name.

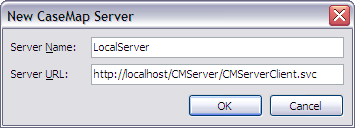

New CaseMap Server

4.In the Server URL field, type in the CaseMap Server address for the client application.

For example: http://[Your Server Name Here]/CMServer/CMServerAdmin.svc.

If you installed CaseMap Server with the default options, simply replace [Your Server Name Here] with the name or address of the machine hosting the CaseMap Server.

5.Click OK.
hmtoggle_plus1To edit a CaseMap Server
1.On the Tools menu, click Options to open the CaseMap Servers tab.

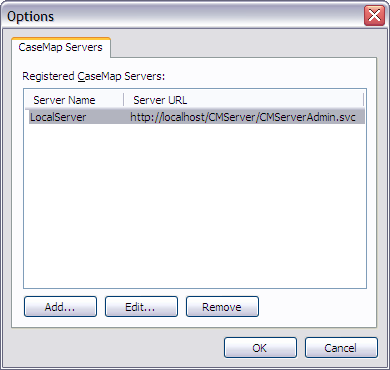

Tools > Options > CaseMap Servers

2.In the Registered CaseMap Servers box, select the server you want to edit.
3.Click the Edit button.
4.In the Edit CaseMap Server dialog box, modify the server name or server URL, then click OK.

The changes now display in the Registered CaseMap Servers box.

5.Click OK to save your changes.
hmtoggle_plus1To remove a CaseMap Server
1.On the Tools menu, click Options to open the CaseMap Servers tab.

Tools > Options > Remove

2.In the Registered CaseMap Servers box, select the server you want to remove.
3.Click the Remove button.

The selected server no longer displays in the Registered CaseMap Servers box.

4.Click OK to save your changes.
