Deploying the CaseMap SharePoint Web Parts

 Previous topic Next topic Topic directory requires JavaScript JavaScript is required for expanding text JavaScript is required for the print function Mail us feedback on this topic!

The CaseMap SharePoint Web Parts allow you to connect with the CaseMap Server and select the CaseMap SQL cases from which you want to publish data. To install the CaseMap SharePoint Web Parts, you need to deploy the spwebpartsdeploy.cab file from Microsoft SharePoint and test authentication with the REST web service.

Once installed, you will configure the CaseMap SharePoint Web Parts to point to the CaseMap Server. The CaseMap SharePoint Web Parts support both Windows and simple authentication.

•For Windows authentication, the URL should end with "CaseMapAD\CMServerAD.svc".
•For simple authentication, the URL should end with "CaseMapLA\CMServerLA.svc".





ac_note_icon

You must have admin rights to the CaseMap Server/CaseMap Admin Console in order to install the CaseMap SharePoint Web Parts. The CaseMap Server must be installed and set up before you can install and begin using the CaseMap SharePoint Web Parts.



hmtoggle_plus1To deploy the CaseMap SharePoint Web Parts
1.Launch the Microsoft SharePoint Central Administration Site.

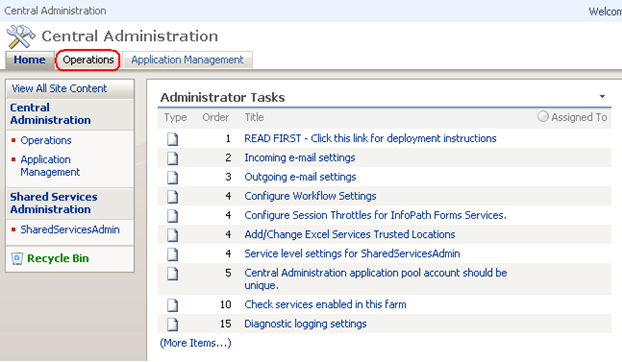

2.Click the Operations tab.

Central Administration > Operations

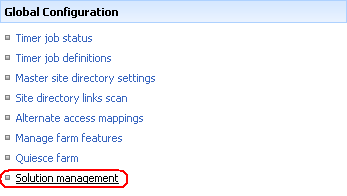

3.Under Global Configuration, click Solutions Management.

Global Configuration > Solution management

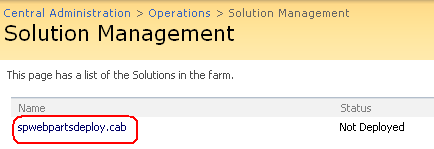

4.On the Solutions Management page, click on the spwebpartsdeploy.cab file.

Solution Management

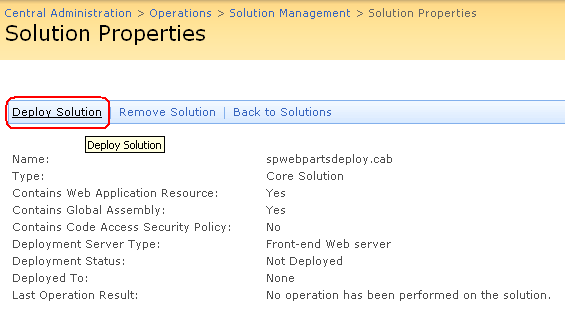

5.Click the Deploy Solution link.

Solution Properties > Deploy Solution

6.Launch the site containing the page that will contain the web parts.
7.Click the Site Actions button AC_sharepoint_site_actions_button and then click Edit Page.
8.Locate the web part zone to which you want to add a web part.
9.Click the Add a Web Part link.

Web Part Zone > Add a Web Part

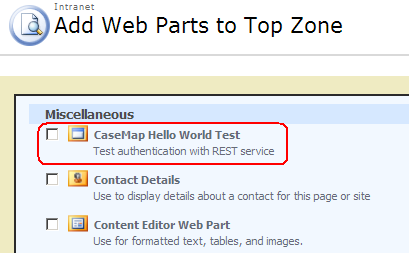

10.In the Add a Web Parts dialog box, scroll to the Miscellaneous section.

Add Web Parts dialog box

11.Select the CaseMap Hello World Test check box to test authentication with the REST service.
12.Click the Add button.

The web part now displays in the Edit Page.

13.Click the Publish button AC_sharepoint_publish_button to publish data to the page, if required.

You can now set up the web part with the appropriate properties.
